Smart Wi-Fi Staff Access Control with Time Attendance 12V
Smart Wi-Fi Staff Access Control with Time Attendance 12V
Couldn't load pickup availability

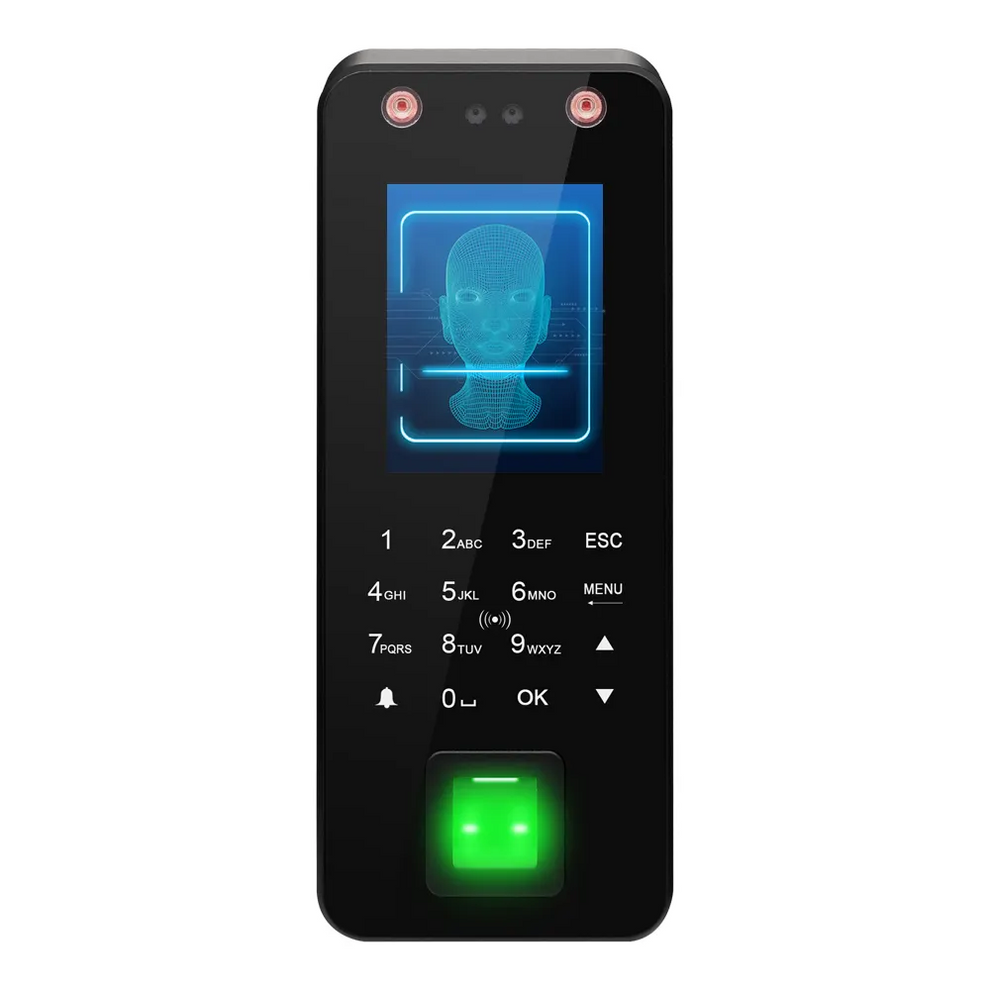

Our WIFI Access Control w/ Time Attendance can be used with Face recognition, Fingerprint, Palm, Keypad, Card, with Doorbell Button can be used for Access Control Doors, Gate motors, Garage Motor Etc.

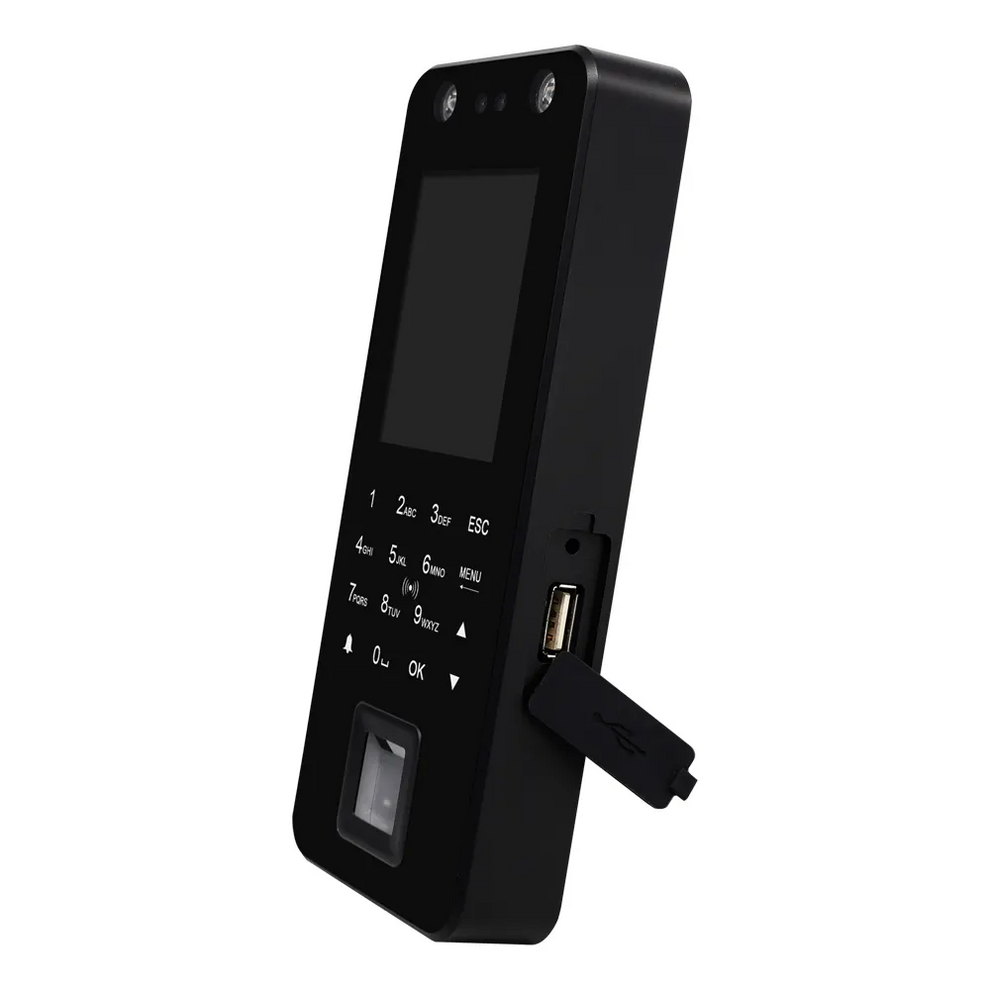

Built-in Time Attendance keeps tracks of entrance and Exit times which can all be exported to USB via the USB A slot on the side of the device.
Features;
Supports up to 100 users including up to 100 Common Users (100 Fingerprints or 100 Card/ Passwords users).
Can Store up to 100 000 Records for Time Attendance.
Unlock by Face, Fingerprint, Palm, Password, Card, or App. App unlock request only when the Doorbell Button is pressed.
Face recognition distance: 0.5-1.2m.
Touch screen Number keypad and Fingerprint Sensor with LED backlighting and Doorbell Button.
Pin/ Password Length is 4-6 Digits.
Can be used as a Wiegand Reader.
Built-in Sensor for Anti-tamper.
Open your Door from anywhere in the world. App unlock request only when the Doorbell Button is pressed.
Get alerted via Notification on your Mobile Smartphone within seconds.
Can be used as a stand-alone system and or connected to the Tuya or Smart Life app for Remote Unlocking via your Mobile Phone.
In-App Features;
App unlock request when the Doorbell Button is pressed.
Temporary Password: Generate One-Time Password | Unlimited Use Password (Set a Start and End Date & Time)
Specifications;
Electrical Voltage: DC12V.

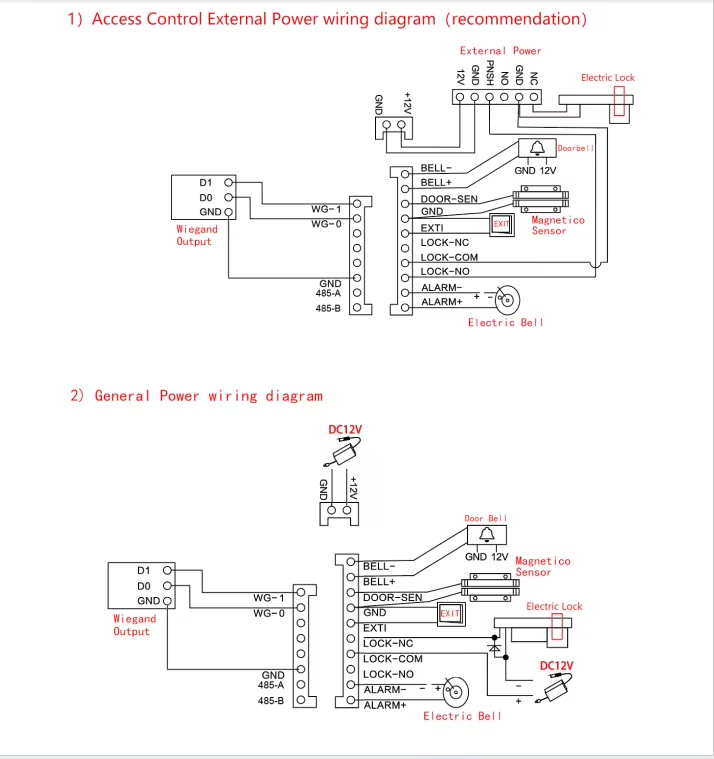

Wiring Connections support Relay Output 2amp max (NO, Common, and NC), Exit Button, Alarm, Door Contact, Wiegand Input, and Wiegand Output.
Camera for FaceKeypad for Password or Code | Fingerprint Reader | Card Reader (ID Card 13.56Mhz) | Wiegand Reader.
Can be used for Doors, Gate Motors, Garage motors, etc.
App can only be used for Remote Unlock Request and the generation of Temporary Passwords.

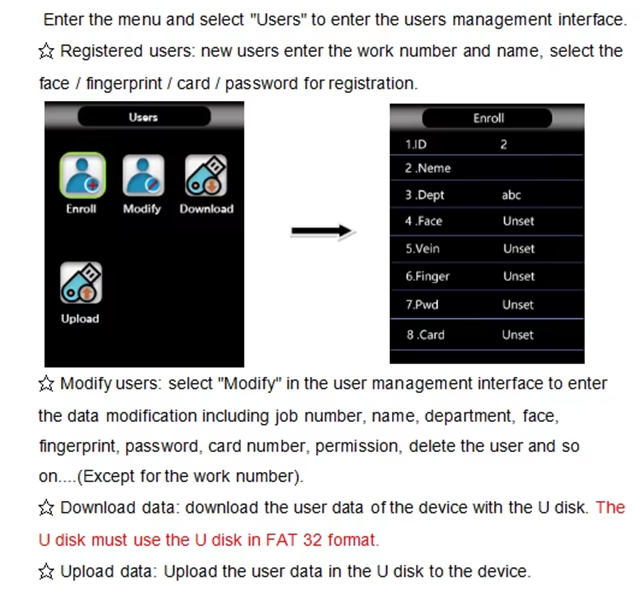

User Management can only be done from Menu on the Device.
Time attendance Records can only be extracted by plugging a USB and downloading a file from Menu on the Device to USB Flash Drive.The
User Manual has all the instructions for setting up the Device and Users.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4GHz Wifi Only.
Material: ABS | Color: Black.
Installation: Indoor. The Product is not Waterproof.
Dimensions: Box 255 x 152 x 82mm
Weight: 0.49kg.

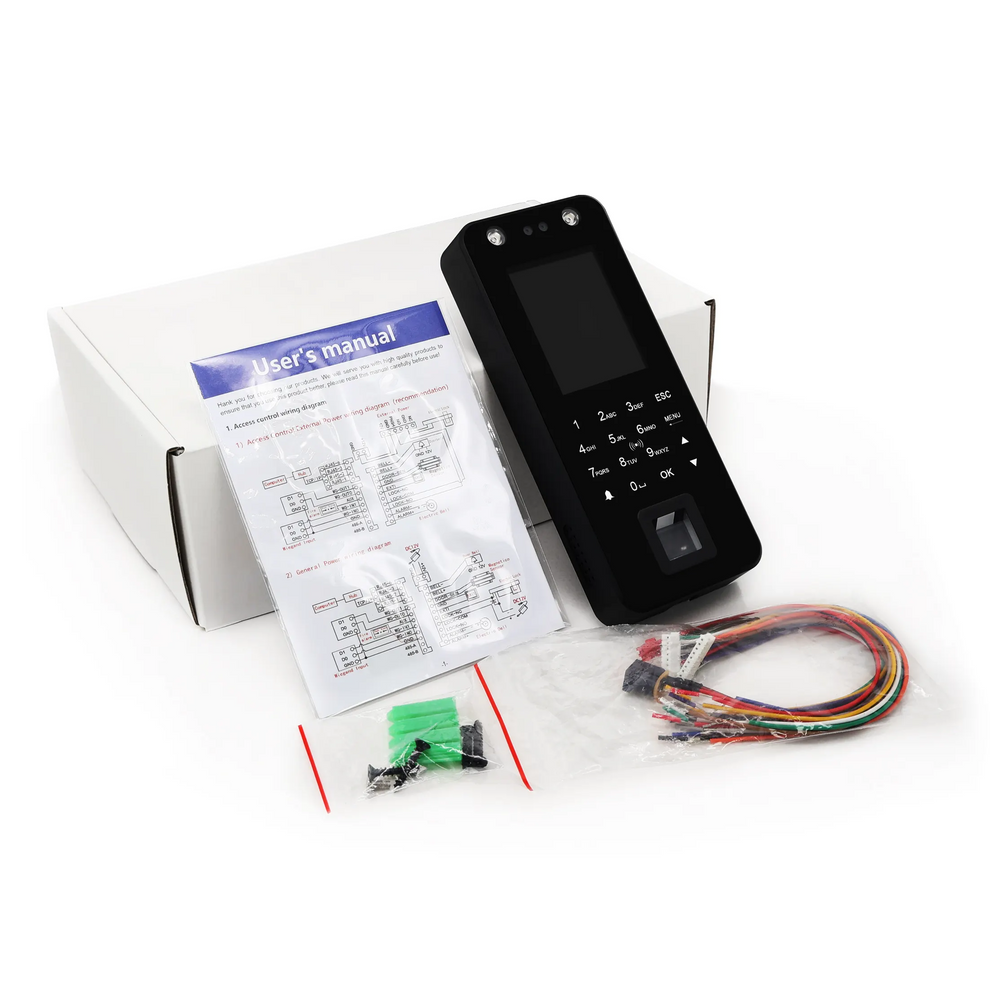

What's in the Package;
1 x Tuya WIFI Access Control Face Fingerprint Palm Keypad Card Doorbell w/ Time Attendance 12V.
1 x Mounting Bracket.
1 x Power Cable to Connector.
1 x Connector to Wires cables.
1 x Set of Screws.
1 x User Manual.
Please note that this is only the Access Control Fingerprint Keypad as per the Picture. A Magnet Door Lock, Power Supply, Push Release Button, etc is needed in order for this to work properly.
