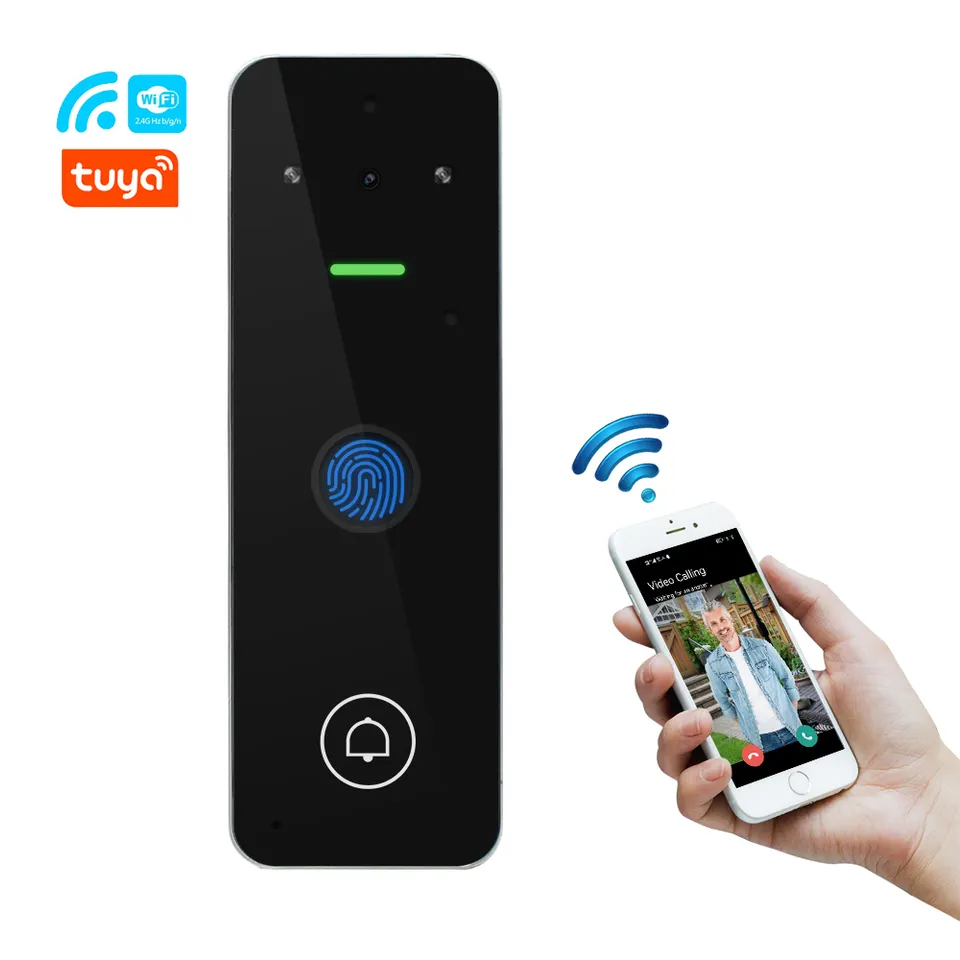

Smart Wi-Fi Waterproof 12V Camera Access Door/Gate FC5

Our WIFI Waterproof 12V Video Doorbell with Intercom, Access Control, Fingerprint Reader, Card Reader, and Doorbell Button can be used for Access Control Doors, Gate motors, Garage Motor Etc, and can unlock from Mobile smartphones via the Smart Life App.

This device is for Single Door use and can be used as a Standalone access controller or Wiegand output Reader.

Features;
Supports up to 1000 users including up to 990 Common Users (890 Card/ Passwords users and 100 Fingerprint Users), and 10 Visitors.
Unlock by Fingerprint, Card, or App.
Live Video Feed via the 0.3MP 480P Camera with Night Vision.
Intercom to talk to your visitors via the speaker and Microphone Built into the Device.
Touch screen Doorbell Button with LED backlighting.
Pin/ Password Length is 4-6 Digits.
Open your Door from anywhere in the world.
Get alerted via Notification on your Mobile Smartphone within seconds.
Can be used as a stand-alone system and or connected to the Tuya or Smart Life app for Remote Unlocking via your Mobile Phone.

In-App Features;
Tap and Hold to Unlock.

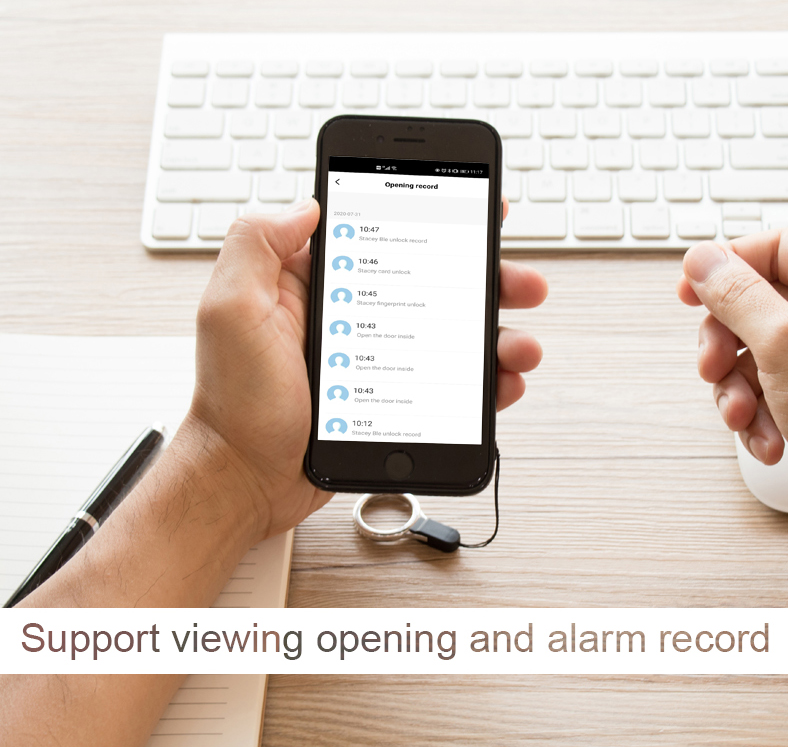

Logs (Records User, Date, Time of unlock or Alarm Failed attempts)
Video Surveillance: View Live Camera Video feed, Volume Mute/ Unmute, Touch Talking, and Unlock.
Member Manage: Administrator (Can manage Devices and Members. Must have Tuya or Smart Life app) | Ordinary Member (Can only view Unlock and Alarm records. User can be created without them having the app). Add Multiple Fingerprints or Cards under each user Profile. Set an Effective time (Forever or Certain Effective and Expire Date including Repeat certain Days; Monday to Sunday and Start and End times) and Delete the User.
Settings: Keep Door Open (Forever or up to 2 Start and End times including Repeating certain Days; Monday to Sunday) | Remote Unlock Settings (Unlock from App). Permission for all app users or Admin users Only | Passage set | Automatic Unlock | Auto Unlock Time (1-100 seconds) | Alarm Time (1-180 Seconds) | Key Volume.

Specifications;
Electrical Voltage: DC12V-18V | Working Current ≤150mA | Idle Current ≤60mA.

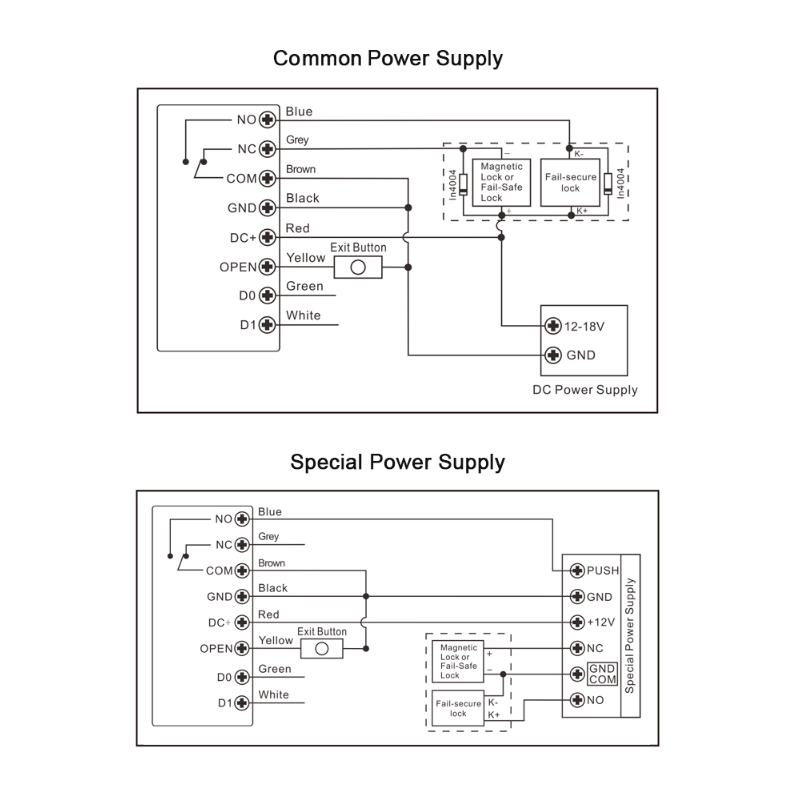

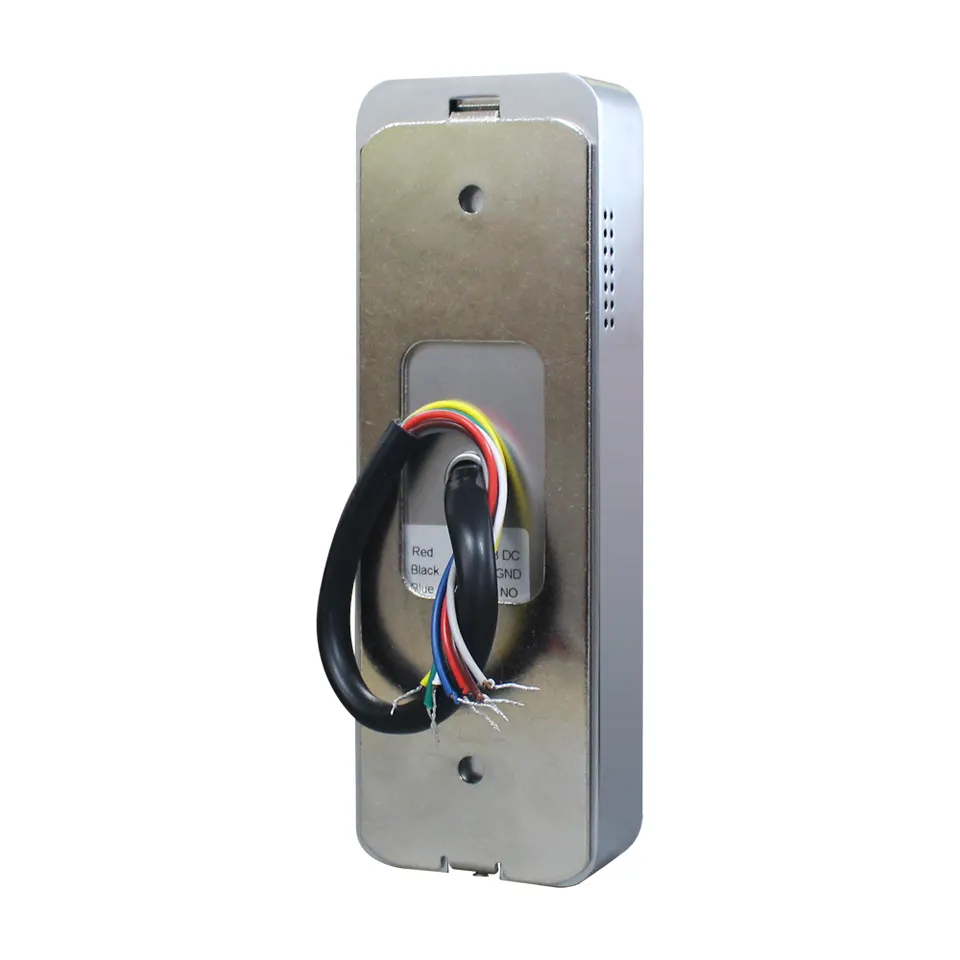

Wiring Connections support Relay Output 2amp max (NO, Common, and NC), Exit Button, Wiegand Input, and Wiegand Output.
Fingerprint Reader | Card Reader (ID Card 125KHz EM) | Wiegand Reader (26-44 Bits input and output).
Can be used for Doors, Gate Motors, Garage motors, etc. Will connect to 12V DC+ (Live) and GND (Ground) to power up the unit and COM and NO (Normally Open) connected to PB (Push Button) / BT (Button Trigger) on your Motor Circuit Board.
Wireless Frequency: WiFi Standards IEEE 802.11 b/n/g on the 2.4G Hz Only.
Material: Zinc-Alloy | Color: Black and Silver.
Waterproof IP65.
Installation: Indoor or Outdoor.

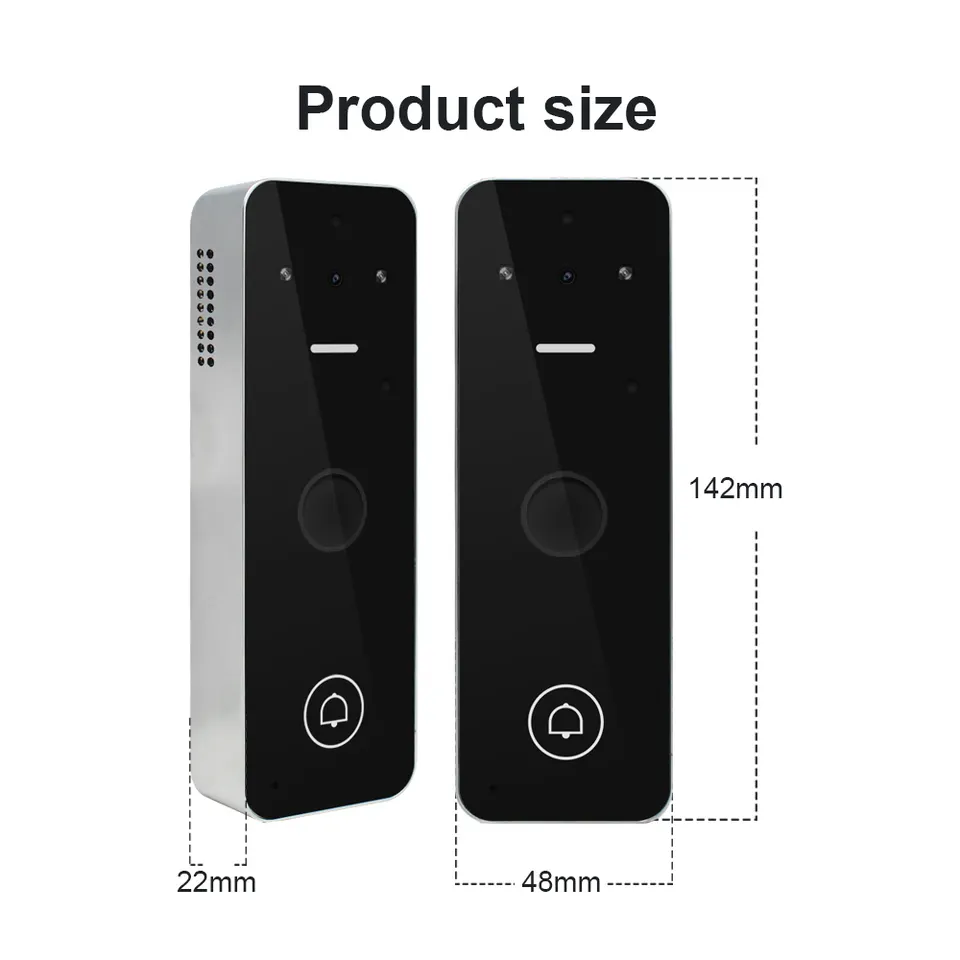

Dimensions: Box 159 x 72 x 62mm
Weight: 0.42kg.

What's in the Package;
1 x WIFI Waterproof 12V Video Doorbell Access Control Fingerprint Card Door Gate VC4F.
1 x Master Card.
1 x Remote.
1 x Diode IN4004.
1 x Set of Screws.
1 x Allen Key.
1 x User Manual.

Please note that this is only the Video Doorbell Access Control Keypad as per the Picture. A Magnet Door Lock or Electric Lock, Power Supply, Push Release Button, etc is needed in order for this to work properly. Can connect Directly to the BT (Button Trigger) or PB (Push Button) slots to existing 12V Doors, Gate Motors, Garage motors, etc.
