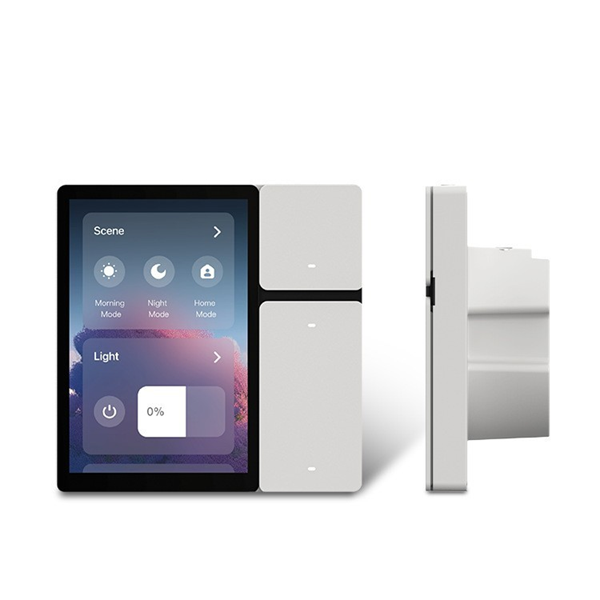

Smart 3.5 inch In-Wall Touch Screen Control Panel

Control your smart home devices from 1 place using its user-friendly interface.

Features;
Control a wide range of devices, such as switches, light bulbs, cameras, sockets, Curtain, video doorbells etc.

A sophisticated design with a Black & White Panel and a backlight touch screen, lets you easily find the switch in the dark.

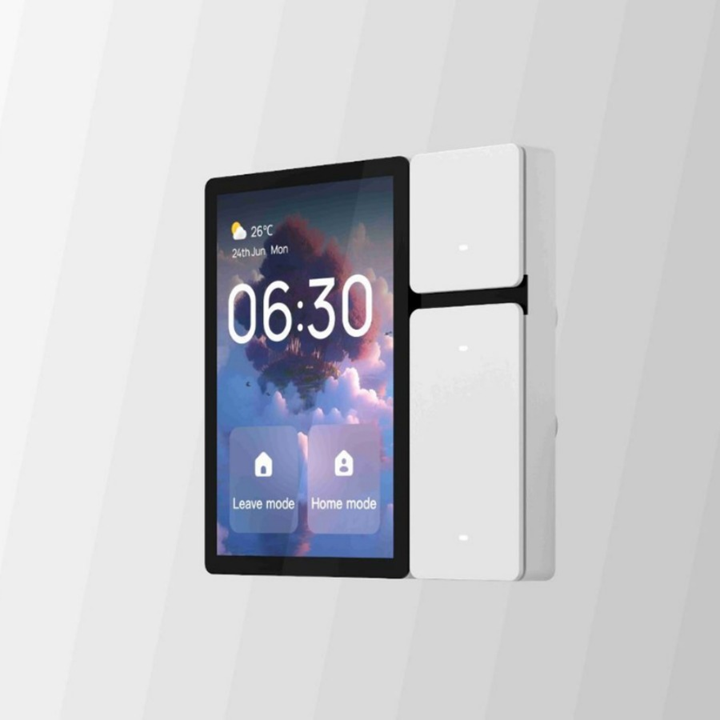

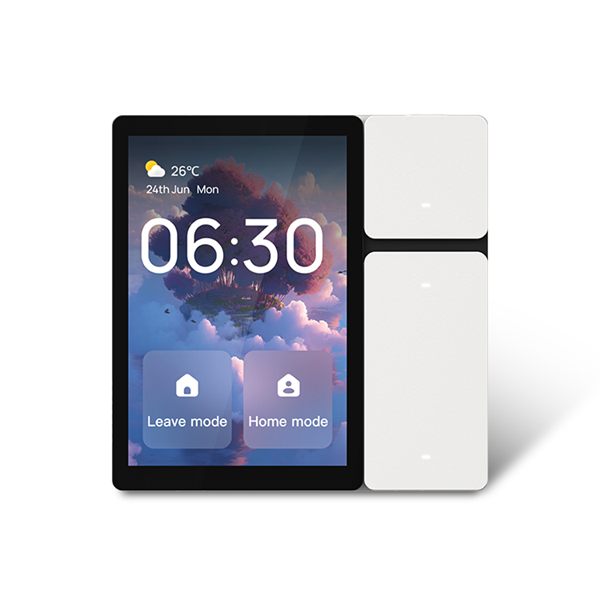

The Home Screen Displays the Time, Weather, Date, Day, and 2 Shortcut Buttons on screen for either Scenes, Device Control, or Controlling the built-in 3CH Relays and also 3 physical Click Buttons on the side.
Built-in IR Remote controller lets you control IR Remote device within range of the Panel.
Choose from Different themes for the Home screen background.
Built-in Microphone and speaker.
Switching mode via Touch Panel, 3 physical Click Buttons, Smart Life Mobile phone App.

Specifications;
Electrical Voltage: 100V-240V AC.
Relays: 3 Channels relays for Incandescent, CFL/ LED lights/ Bulbs up to 200W per channel. Uses input power from input Live and Neutral wire.
Screen Size: 73 x 49mm | 3.5 inch | 480 x 320 IPS screen | Multi-touch.
Connect directly to WiFi 2.4Ghz only for Internet connection only.
Use a Wi-Fi connection to your router to connect to the cloud for Wi-Fi devices. Cannot connect Wi-Fi devices directly to this device.
Wireless Frequency: Connects to WiFi 2.4GHz Only.
Panel Material: Glass front panel. Backshell; PC.
Color: Black and White.
Installation: In-Wall.
Panel Dimensions: 86 x 86 x 11.5mm.
Weight: 200g.

What's in the Package;
1 x Smart WIFI 3.5 inch In-Wall Touch Screen Control Panel w/ 3CH Relays & IR Remote Controller.
2 x Screws
1 x Reset Pin.
1 x QR Code (Digital User Manual)

Please note the wire connection is Live and Neutral which is required to power up this Device.
