Smart Wi-Fi Door Handle (Face) Lock C5

Premium smart access with face recognition and video intercom

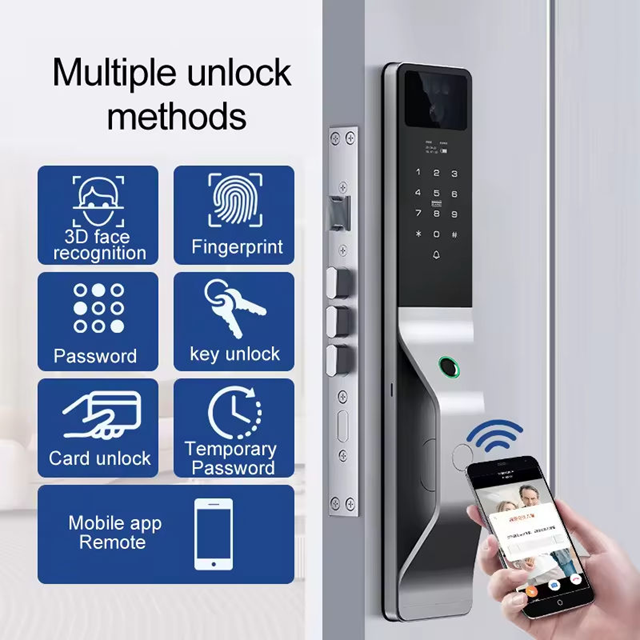

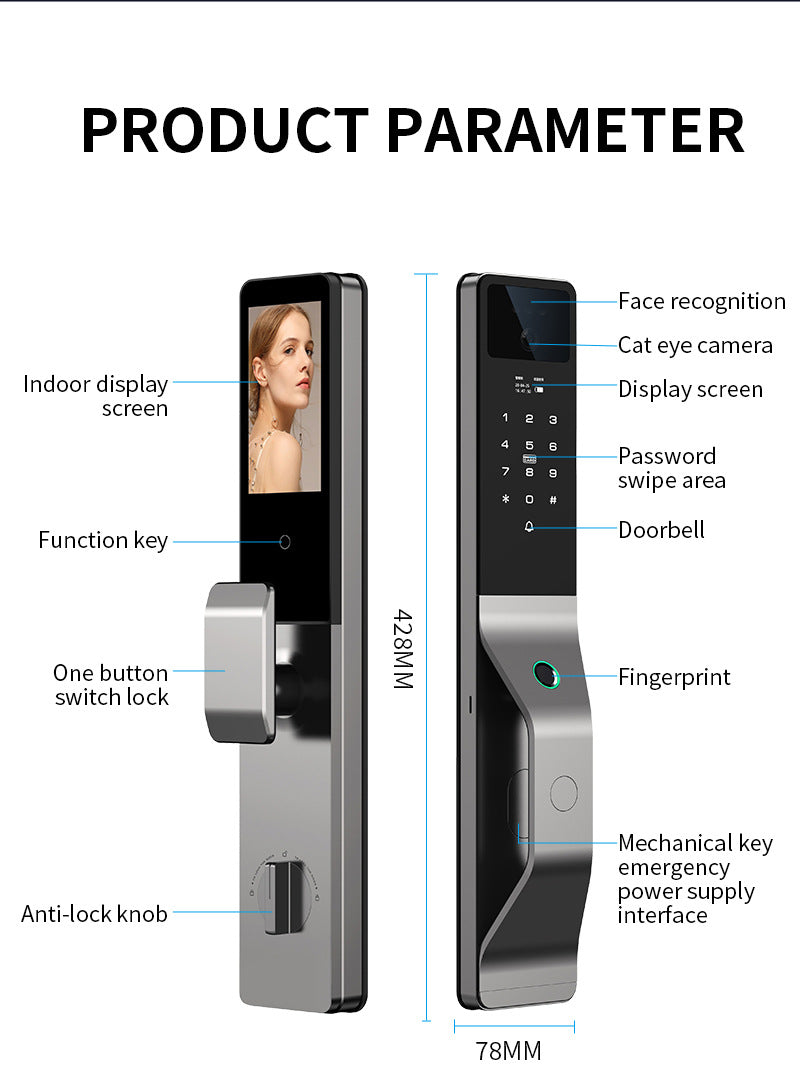

The C5 is designed for homeowners and properties that want a fully automatic smart lock with multiple access methods, a built-in camera and an indoor display. Unlock by face, fingerprint, password, IC card, mechanical key or through the Smart Life app.

Why choose the C5?

• Up to 250 users, including up to 50 face profiles and 100 fingerprints
• 2MP / 1080P front camera with video-doorbell intercom

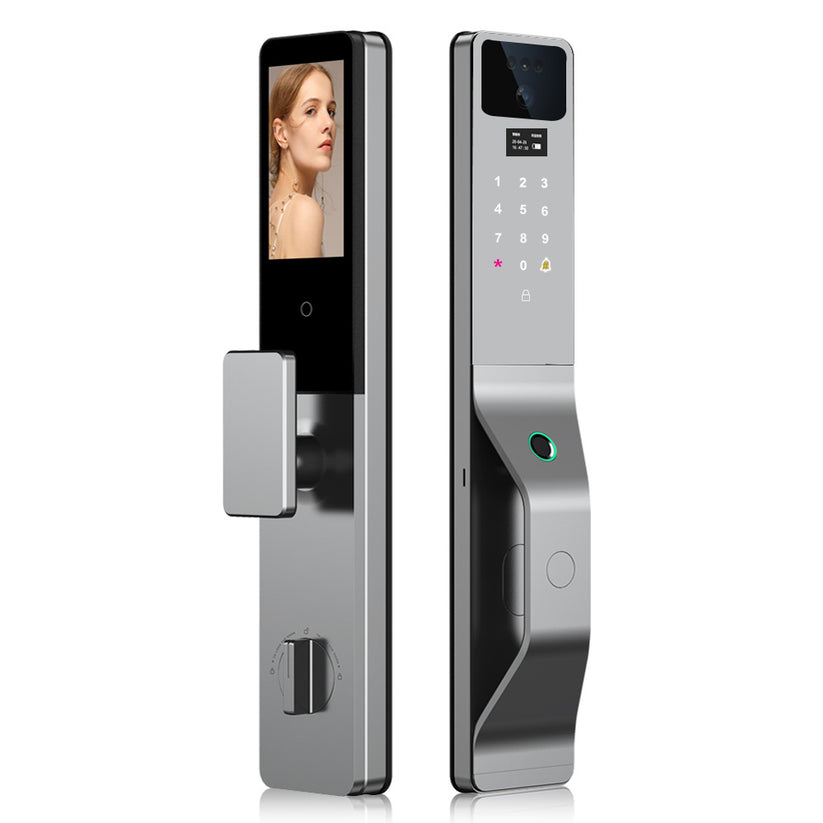

• 4.5-inch indoor OLED display for viewing visitors
• Fully automatic motorised locking and unlocking
• Human-body detection wakes the keypad as you approach
• Anti-peeping password entry supports random digits around the correct code

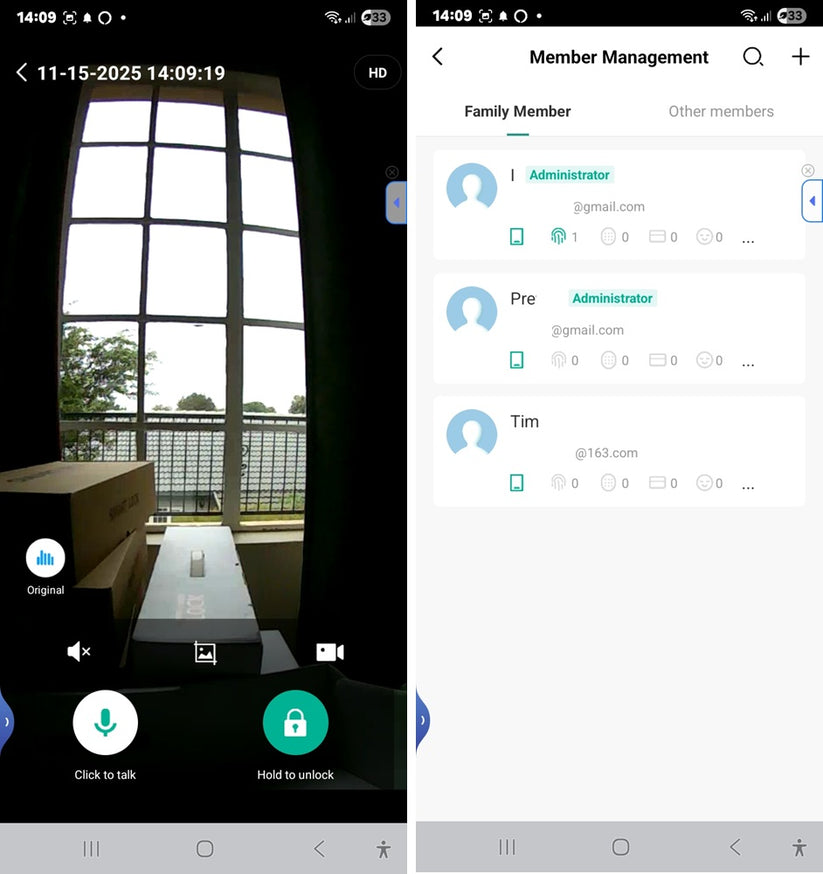

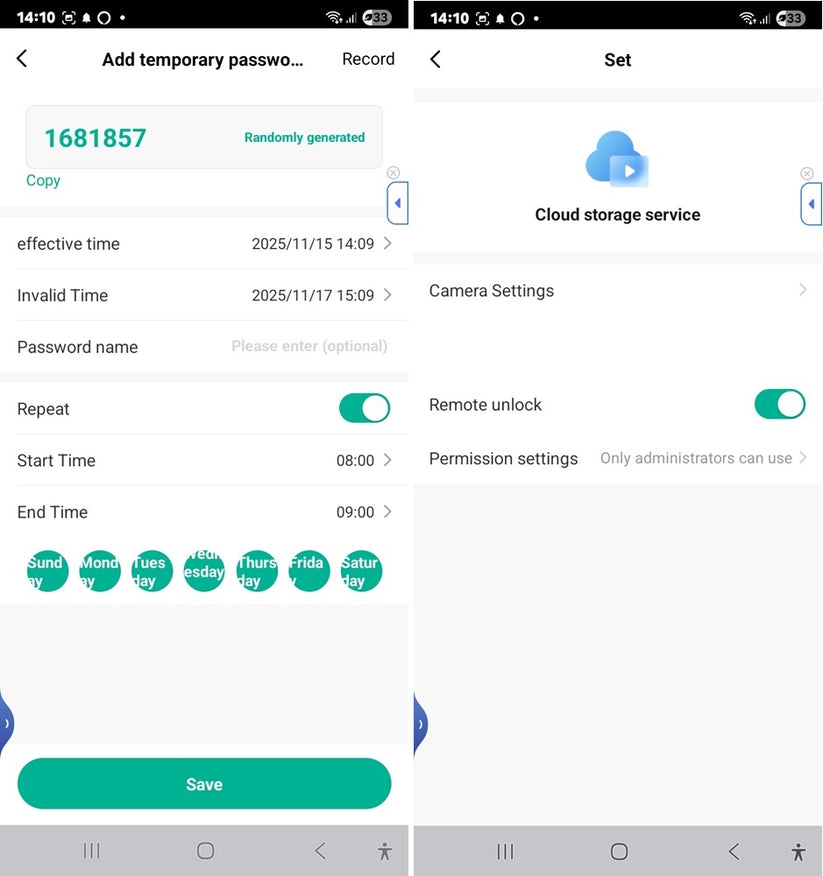

• Remote Smart Life app access over 2.4GHz Wi-Fi
• Dual rechargeable lithium batteries: 4200mAh + 2500mAh
• USB-C emergency power input

Door compatibility

• Door thickness: 40–120 mm
• At least 100 mm mounting area is required on the door/frame area
• Default 6068 mortise: 240 × 24 mm, 1 latch + 4 bolts
• Reversible for left- or right-opening doors

Important: The C5 is not waterproof or rainproof. Install it indoors or in a properly covered entrance where water cannot reach the lock.

What's included

Front keypad handle, rear handle, display/camera assembly, 4200mAh battery, 2500mAh battery, 2 IC cards, 6068 mortise and strike plate, 2 keys, cylinder, spindle, screws and fittings, USB cable, drill template, installation guide and user manual.
